    Product Detail

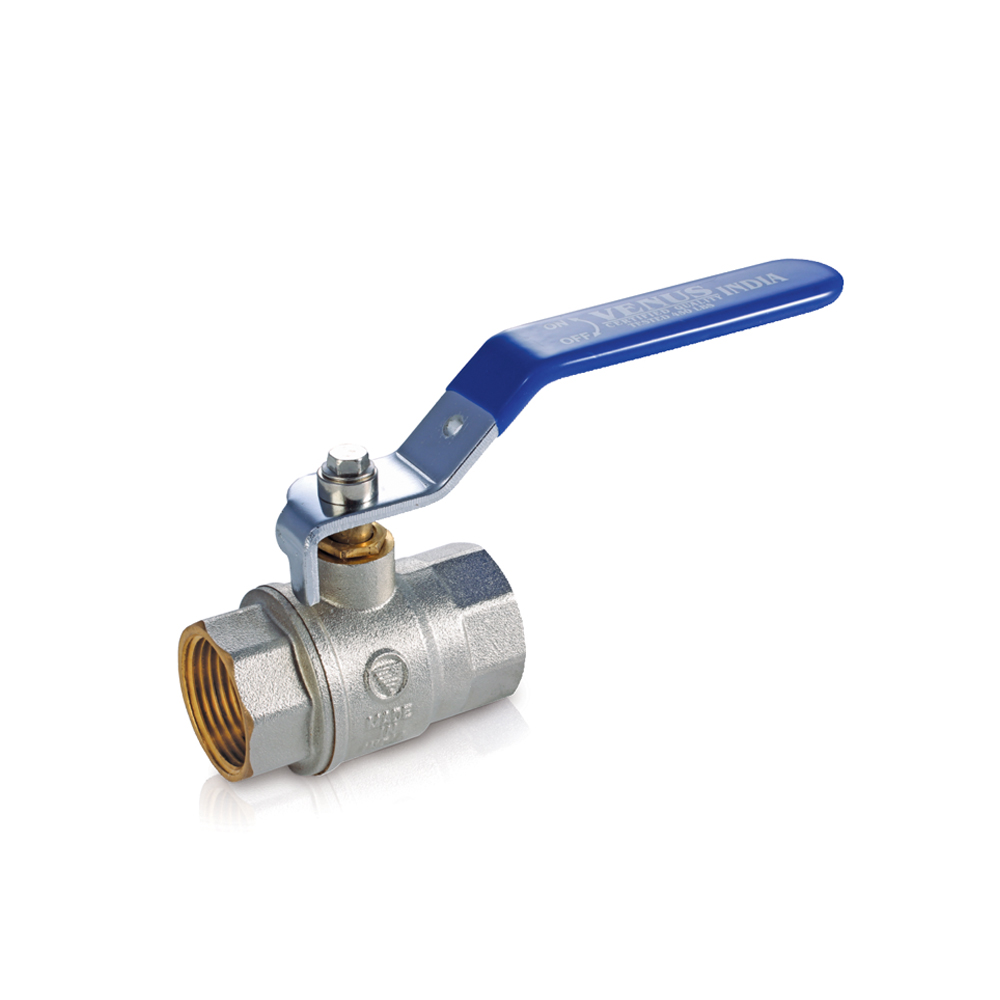

    90 LIGHT BALL VALVE F/F

    Category:
    No Part Material
    1 BODY FORGED BRASS
    2 CAP FORGED BRASS
    3 BALL BRASS
    4 BALL SET PTFE
    5 STEM BRASS ROD
    6 STEM SEAT PTFE
    7 NUT BRASS
    8 HANDLE MILD STEEL
    9 CUP WASHER MILD STEEL
    10 SCREW MILD STEEL
    Size Inch Working Bar Pressure Psi Max. Working Temperature
    1/2" 27.58 400 -29° to 250°
    3/4" 27.58 400 -29° to 250°
    1 27.58 400 -29° to 250°
    1.1/4 27.58 400 -29° to 250°
    1.1/2 27.58 400 -29° to 250°
    2 27.58 400 -29° to 250°
    2.1/2 17.24 400 -29° to 250°
    3 17.24 250 -29° to 250°
    4 17.24 250 -29° to 250°
    Size 1/2" 3/4 1" 1.1/4" 1.1/2" 2" 2.1/2" 3" 4"
    A 49 58 67 74 87 104 127 147 177
    B 50.5 55.5 65.5 72.5 79 97 122 149 166
    C 87 111.5 109 123.5 141 157 220 265 265
    • Easy installation
    • Low turning torque
    • Highly corrosion resistant for a wide range of temperature
    • Suitable to be used with high pressure application
